Unlocking the Mystery: How Common Rail Injectors Power Your Diesel
Why Understanding Common Rail Technology Matters for Your Fleet
Gone are the days when diesel engines were synonymous with loud, smoky, inefficient machines. Modern diesel technology has transformed these powerplants into quiet, clean, and incredibly efficient workhorses that power everything from pickup trucks to massive freight haulers. At the heart of this revolution lies common rail direct injection (CRDi) technology—a sophisticated fuel delivery system that has become standard on virtually every modern diesel engine since the late 1990s.
How does a common rail injector work? In simple terms, it receives high-pressure fuel (up to 29,000 psi) from a shared fuel rail and uses electronic controls to precisely spray atomized fuel into the combustion chamber. The Engine Control Unit (ECU) dictates the exact timing and quantity of fuel delivered through a solenoid or piezoelectric valve.
Quick Answer: Common Rail Injector Operation
High-pressure fuel enters the injector from the common rail.
The control valve (solenoid or piezo) receives a signal from the ECU.
The valve opens, causing pressure to drop in the control chamber.
The needle lifts, allowing fuel to spray through nozzle orifices.
Injection stops when the ECU cuts the electrical signal.
This system operates at pressures exceeding 2,000 bar (29,000 psi), resulting in better fuel atomization, more complete combustion, reduced emissions, and significantly improved power. For fleet managers, understanding how these precision components work isn't just technical curiosity—it's essential knowledge for maintaining uptime, controlling costs, and ensuring your trucks meet increasingly strict emission standards.
The Old vs. The New: What is a Common Rail System?
To understand how a common rail injector works, it helps to compare it to its predecessors. A common rail system is a direct fuel injection technology built around a high-pressure fuel rail that acts as a shared reservoir, feeding multiple electronically controlled injectors. The genius of this system lies in decoupling pressure generation from the injection event itself. Instead of creating pressure only when needed, the system maintains constant, extremely high pressure, ready to deliver fuel instantly. This allows for unprecedented control over fuel delivery to each cylinder.
The Limitations of Mechanical Injection
Older diesel engines relied on mechanical systems like pump-line-nozzle (PLN) and unit injectors (EUI). While robust, they had significant drawbacks. Their biggest limitation was that injection pressure was tied directly to engine speed—low pressure at idle, higher pressure at high RPMs. This meant the injection system was at the mercy of how fast the engine was running.
Furthermore, injection timing control was limited. These mechanical systems were "one-shot" affairs, injecting fuel once per combustion cycle with little flexibility. This resulted in less-than-optimal combustion, leading to the higher noise ("diesel clatter") and emissions that gave older diesels their reputation.
The Common Rail Revolution
Common rail technology changed the game by maintaining constant high pressure—often up to 2,500 bar (36,000 psi)—regardless of engine speed. This constant pressure, combined with electronic control, allows the Engine Control Unit (ECU) to command multiple, precise injections per combustion cycle. The result is dramatically improved atomization, where fuel is broken down into an incredibly fine mist that mixes thoroughly with air. This leads to more complete combustion, delivering the cleaner emissions, better fuel economy, and quieter operation modern trucks demand. For more insights, explore this Diesel Engine Common Rail guide.
Feature Common Rail Systems Mechanical Injector Systems (PLN/EUI) Pressure Constant, high pressure (up to 2,500 bar) Varies with engine speed, lower pressure Control Electronic (ECU), highly precise Mechanical, less precise Injection Timing Flexible, multiple injections per cycle Fixed, single injection per cycle Emissions Significantly lower (NOx, particulates) Higher Noise Much quieter due to pilot injection Loud ("diesel clatter")
For a more detailed look at how these systems evolved, check out this Simple Guide To Diesel Common Rail Injection.
The Anatomy of a Modern Diesel: Key System Components
To truly understand how a common rail injector works, we must see it as one part of a sophisticated system. The magic happens through the seamless interconnectivity of four core components: the high-pressure fuel pump, the common rail, the Engine Control Unit (ECU), and the fuel injectors. Each part must withstand immense pressures while maintaining microscopic tolerances.
1. The High-Pressure Fuel Pump
Considered the system's powerhouse, this pump's sole job is to generate massive pressure. Driven mechanically by the engine, these pumps create pressures up to 2,500 bar (36,000+ psi). The ECU cleverly controls how much fuel enters the pump via an inlet metering valve, allowing the system to maintain perfect pressure whether the engine is idling or under heavy load.
2. The Common Rail (Fuel Rail)
The common rail is a fortified tube that acts as a high-pressure reservoir or accumulator. It stores fuel at a constant high pressure and ensures every injector receives fuel at the exact same pressure. It's equipped with a rail pressure sensor that constantly communicates with the ECU and a pressure relief valve as a critical safety backup to prevent over-pressurization. This design ensures all Diesel Fuel Injectors are supplied evenly for balanced engine performance.
3. The Engine Control Unit (ECU)
If the pump is the muscle, the ECU is the brain. This sophisticated computer processes inputs from dozens of sensors—engine speed, load, temperature, throttle position, and more. It performs split-second calculations to determine exactly when to inject fuel, how much to inject, and for how long. It then sends lightning-fast electrical signals to each injector while simultaneously managing rail pressure in real-time to optimize performance, fuel economy, and emissions.

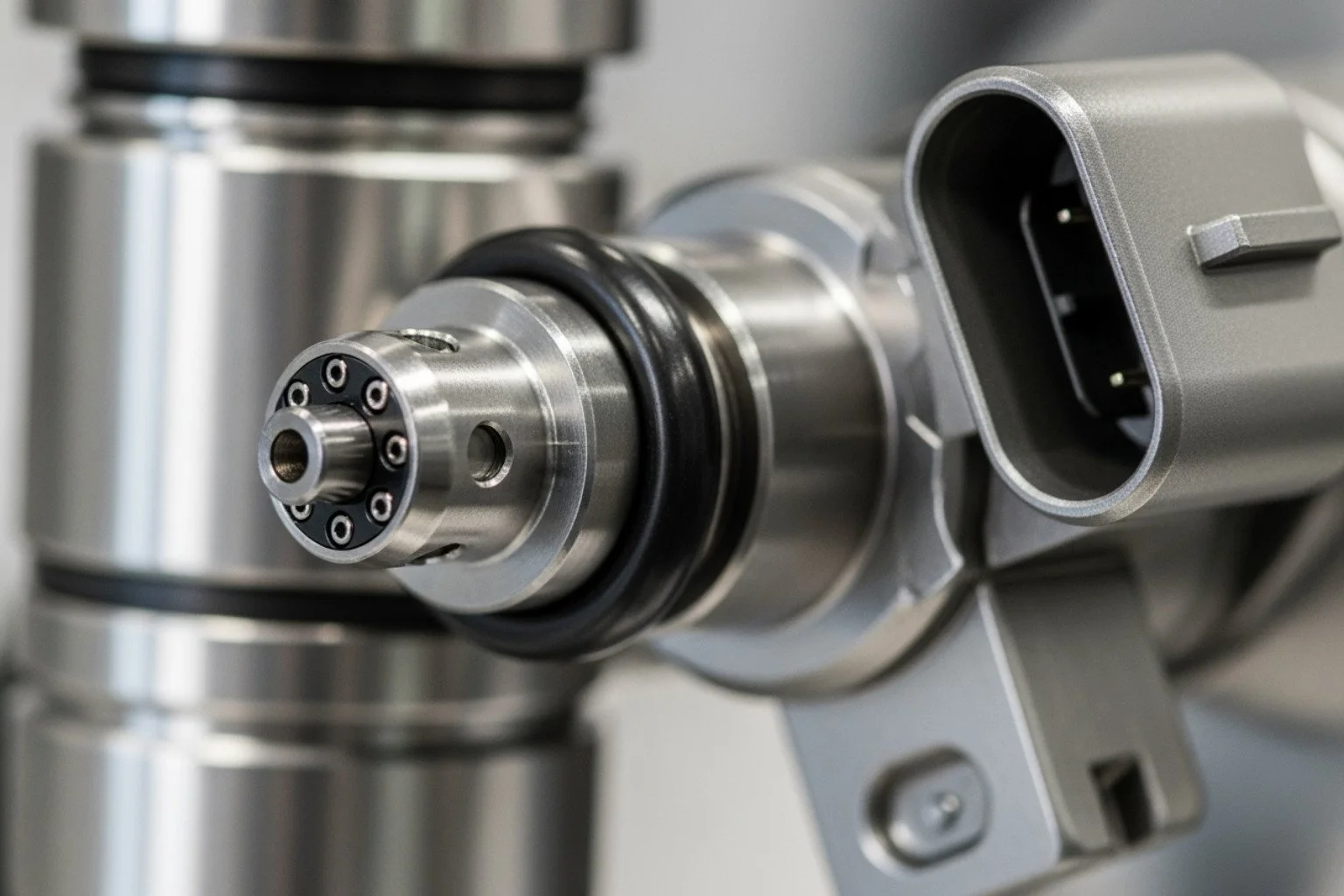

4. The Injector Nozzle
This is where all the pressure and control come together. The injector nozzle is the final delivery point for fuel into the combustion chamber. Its design is critical, typically featuring five to seven microscopic orifices engineered to create a specific spray pattern. This design atomizes fuel into an incredibly fine mist. This superior fuel atomization ensures the fuel mixes thoroughly with compressed air, leading to more complete and efficient combustion. For a deeper dive, see this explanation of a Common Rail Fuel Injector Explained.
How Does a Common Rail Injector Work? A Step-by-Step Breakdown
Now, let's zoom in on the injector itself. How does a common rail injector work? It's a marvel of hydraulic balance and microsecond timing, changing immense pressure into precisely controlled fuel delivery. These precision components are what separate modern diesels from their predecessors. You can learn more about these devices on our Common Rail Injectors page.
From Pressure to Power: The Injection Process
The magic begins with a delicate balance of hydraulic forces. In its resting state, high-pressure fuel from the common rail fills the injector body and a small control chamber above the injector's needle valve. The pressure in this chamber, aided by a spring, creates a powerful downward force that keeps the needle firmly seated, sealing the nozzle tight.
Here’s a step-by-step look at the injection event:
ECU Signal: The ECU sends a precisely timed electrical signal to an actuator on the injector to begin injection.
Valve Activation: The signal activates either a solenoid valve or a piezoelectric valve. Solenoids use an electromagnet to lift a valve, while piezo actuators use a special crystal that expands instantly when voltage is applied. Piezo actuators are significantly faster, allowing for more precise control and multiple injections per cycle.
Pressure Drop: The actuator opens a tiny control valve, allowing high-pressure fuel in the control chamber to escape to a return line. This causes a rapid pressure drop above the needle.
Needle Lift & Injection: With the pressure above the needle suddenly gone, the high-pressure fuel below the needle easily overcomes the spring force. The needle lifts off its seat, opening the path for fuel to spray through the nozzle's microscopic orifices into the combustion chamber.
Injection Stop: The ECU cuts the electrical signal. The control valve snaps shut, pressure instantly rebuilds in the control chamber, and the needle is forced back down onto its seat, ending the injection event. The entire sequence happens in microseconds.
The Art of the Spray: Multi-Pulse Injection
Common rail's electronic control allows for multiple, distinct injection events within a single combustion cycle. This multi-pulse strategy is key to modern diesel performance.
Pilot Injection (Pre-injection): A small, early squirt of fuel ignites first. This warms the combustion chamber, leading to a smoother pressure rise when the main charge ignites. This is what reduces engine noise (diesel clatter) and also helps reduce NOx emissions.
Main Injection: This is the primary event that delivers the bulk of the fuel, generating the engine's power and torque.
Post-injection: One or more small injections can occur after the main event. This isn't for power; it's to raise exhaust temperatures to help burn off soot (particulate matter) in the aftertreatment system, dramatically reducing visible smoke.
The Payoff: Why Common Rail Technology Dominates
After diving deep into how a common rail injector works, it's clear why this technology became the gold standard. The benefits are not just engineering feats; they are real-world improvements that impact your fleet's performance, operating costs, and environmental compliance. For a comprehensive overview, see this resource on How does Common Rail Injection work?.
1. Improved Engine Performance
The most noticeable benefit is a dramatic improvement in performance. Higher torque output, especially at low RPMs, is a key advantage. Because fuel pressure is constantly available at maximum levels, the engine responds almost instantaneously to throttle input. There's no "lag" waiting for pressure to build.
The independent control of pressure and timing allows the ECU to optimize combustion for any condition. This results in optimized power across the entire engine speed range, delivering smooth, consistent power whether you're pulling a heavy load up a grade or cruising on the highway.
2. Superior Fuel Efficiency and Lower Emissions
Common rail technology pays for itself through fuel savings and easier compliance. The secret is fine fuel atomization. Extreme injection pressures create an incredibly fine fuel mist that mixes more completely with air. This more complete combustion extracts more energy from every drop of fuel, improving your miles per gallon.
This precision also allows engines to meet stringent emission standards like EPA and Euro 6. The multi-pulse injection strategy is key: pilot injection reduces nitrogen oxides (NOx) by controlling combustion temperatures, while post-injection helps burn off soot and particulate matter in the exhaust system. This means less wasted fuel as soot and cleaner operation.
3. A Quieter, Smoother Ride
Common rail technology has silenced the infamous "diesel knock." The pilot injection pre-conditions the combustion chamber, creating a "softer" ignition. When the main fuel charge arrives, it ignites smoothly rather than detonating violently. This smoother pressure rise results in a remarkably civilized engine that is often as quiet as a gasoline counterpart at idle. For drivers, this means less fatigue and a more pleasant working environment.
Keeping the Heart Pumping: Maintenance and Common Failures
The reality of how a common rail injector works is that its incredible precision demands meticulous care. These systems are highly effective but also vulnerable to contamination and wear. Understanding these vulnerabilities is not optional for keeping a fleet reliable. Learning How to Check Common Rail Injectors is a smart investment in your operation's uptime.
The #1 Enemy: Fuel Contamination
Contamination kills common rail systems faster than anything else. These injectors operate with internal clearances as tight as 2-5 micrometers—20 to 50 times smaller than the diameter of a human hair. A single speck of dirt can score precision surfaces, clog nozzle orifices, and cause catastrophic failure.
Water is equally devastating. It causes corrosion on finely machined surfaces and, because it doesn't compress, can create hydraulic shock that cracks internal components. This is why high-quality fuel filtration isn't negotiable. Using multi-stage filters rated for 3-5 micrometers and strictly adhering to service intervals is the literal lifeline of your fuel system. The cost of premium filters is negligible compared to replacing a set of injectors and a high-pressure pump.
Common Failure Points and Symptoms
When injectors begin to fail, the engine will provide clues. Recognizing these warning signs early can prevent a minor issue from becoming a major breakdown.
Smoke: Black smoke typically means over-fueling from a worn or stuck-open injector. White or blue smoke can indicate unburned fuel from internal leaks or poor atomization.
Hard Starting: An engine that is difficult to start, especially when cold, may not be getting the correct fuel quantity for ignition due to leaking or weak injectors.
Rough Idle or Misfires: An imbalance in fuel delivery will disrupt the engine's smooth operation, causing noticeable vibrations or stumbling.
Loss of Power: If the truck struggles under load, faulty injectors may not be delivering enough fuel to meet the engine's demands.
Poor Fuel Economy: Inefficient injection from worn nozzles or incorrect timing forces the engine to burn more fuel to produce the same amount of power.
Other common issues include leaking injectors (which can cause low rail pressure), worn nozzles that degrade the spray pattern, and solenoid or piezoelectric actuator failure. If you catch problems early, professional cleaning may be an option, as explained in our guide on How to Clean Common Rail Diesel Injectors. However, for significant wear or internal damage, replacement is the only reliable fix.
Conclusion
We've journeyed through the fascinating world of common rail injection, exploring how a common rail injector works to make modern diesel engines the quiet, powerful, and efficient workhorses they are today. From the high-pressure pump to the microsecond-precision spray, these components work in harmony to deliver performance and meet strict emission standards.
The common rail injector is the unsung hero of modern diesel performance. As this technology continues to advance, the need for high-quality replacement parts that match OEM specifications becomes even more critical. A precision system deserves precision components.
When it's time to service these critical parts, trust G2 Diesel Products. We manufacture expertly crafted VCE Common Rail Fuel Injectors designed to keep your engines running at peak performance. Whether you operate Volvo, Mack, Kenworth, or Paccar trucks, we have the reliable parts you need.
Explore our complete selection of diesel fuel injectors for Volvo, Mack, Kenworth, and Paccar trucks and find why fleet managers trust G2 for performance, quick delivery, and parts built to last.
