Injector Extraction Made Simple: A Roundup of Common Rail Puller Kits
The Right Tool for a Tough Job
A common rail injector puller is an indispensable, specialized tool engineered to perform one of the most challenging tasks in modern diesel engine repair: safely extracting stuck or seized fuel injectors without inflicting catastrophic damage on the cylinder head or surrounding components. In the world of heavy-duty diesel maintenance, where vehicle downtime translates directly into lost revenue, this tool is not a luxury—it's a necessity.
Modern diesel engines have evolved into high-performance, precision machines. The move to Common Rail Injectors has enabled incredible gains in fuel efficiency, power output, and emissions control. However, these systems operate under immense pressures, often exceeding 30,000 PSI, and within extremely tight tolerances. This high-stress environment, combined with intense heat cycles and exposure to combustion byproducts, creates the perfect storm for injectors to become fused into the aluminum or cast-iron cylinder head.
When an injector seizes, it's not just stuck; it can be chemically bonded to the engine. Attempting to remove it with brute-force methods like pry bars, chisels, or generic pullers is a high-stakes gamble. The injector body can snap, leaving its most delicate and deeply embedded part—the nozzle—broken off inside the cylinder head. This failure instantly escalates a routine maintenance job into a major engine overhaul, potentially requiring the cylinder head to be removed. A repair that should have taken a few hours can balloon into a multi-day ordeal, costing thousands of dollars in labor and parts, not to mention the crippling cost of a commercial truck being out of service.
Quick Comparison: Common Rail Injector Puller Types
Mechanical Slide Hammer Puller: This is the classic, go-to solution for many technicians. It uses the focused impact force generated by a sliding weight to jolt the injector free. It's affordable, simple to use, and requires no external power, making it ideal for a wide range of situations.
Hydraulic Puller: For the most stubbornly seized injectors, hydraulic power is the ultimate answer. These kits use a hydraulic ram to apply immense, controlled, and sustained pulling force—often between 12 and 20 tons—to smoothly and safely extract the injector without the shock of an impact.
Pneumatic (Air Vibration) Puller: This type uses high-frequency vibrations, powered by compressed air, to break the bonds of corrosion and carbon buildup. It's a method that relies on finesse over force, making it excellent for delicate injectors or working in confined spaces.
Universal Kits: These versatile kits are the workhorses of general repair shops, featuring a wide array of adaptors and components to fit injectors from numerous manufacturers.
Engine-Specific Kits: For specialists, these kits are tailored to the unique injector designs and engine layouts of particular brands like Volvo, Mack, Kenworth, or Paccar, ensuring a perfect fit and maximum effectiveness.
If you're a technician or fleet manager dealing with Fuel Injector Problems Diesel, investing in the correct puller kit is a direct investment in efficiency, profitability, and peace of mind. It's the professional solution to a problem that demands nothing less.
What is a Common Rail Injector Puller and Why Do You Need One?
A common rail injector puller is a purpose-built tool designed with the singular goal of safely and efficiently extracting fuel injectors that have become seized in the cylinder head. In modern Diesel Engine Common Rail systems, which are detailed in resources like Wikipedia's overview of common rail technology, injectors are subjected to extreme conditions. The combination of ultra-high fuel pressures, intense combustion heat, and tight installation tolerances makes them highly susceptible to getting stuck.
A specialized puller works by securely attaching to a designated point on the injector—such as the solenoid threads, fuel inlet, or a purpose-built collar—and applying controlled, linear force along the injector's axis. This targeted extraction method is engineered to overcome the immense forces holding the injector in place without resorting to the brute, uncontrolled force of hammers or pry bars. The result is a clean removal that protects both the potentially reusable injector and, more importantly, the expensive and difficult-to-repair cylinder head.

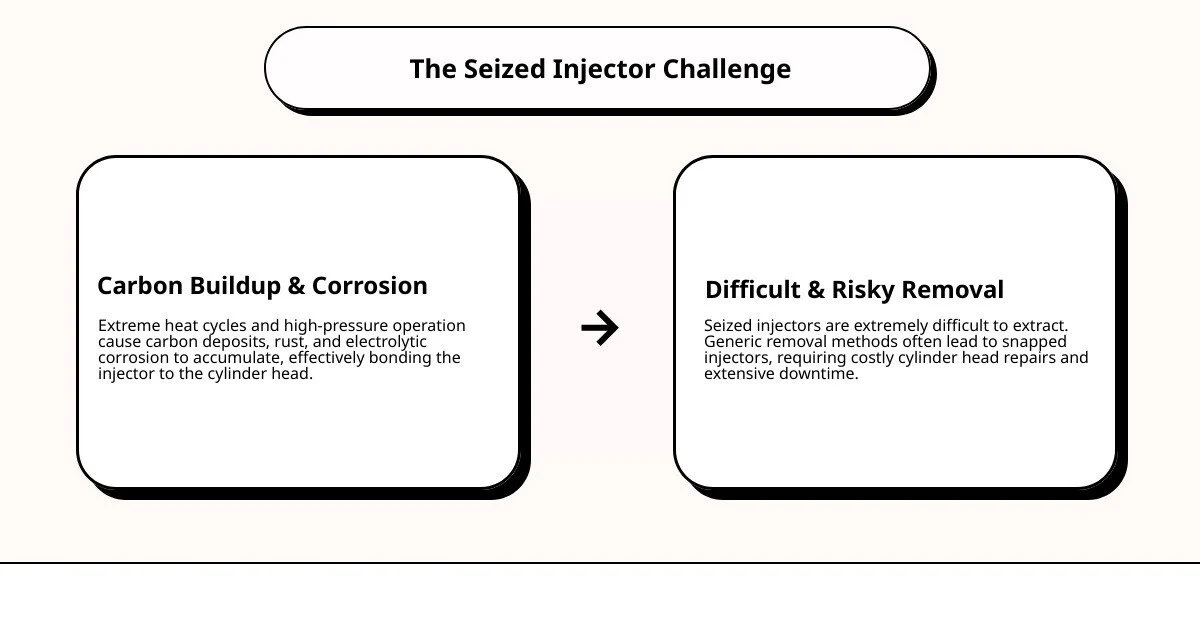

The Unseen Forces: The Science Behind Seized Injectors
Injectors don't just get stuck; they become chemically and physically bonded to the engine through a combination of powerful factors:
Electrolytic Corrosion (Galvanic Corrosion): This is a primary culprit. When two dissimilar metals (like the steel injector body and the aluminum cylinder head) are in contact in the presence of an electrolyte (moisture from the air or contaminants), they form a galvanic cell. An electrical current flows between them, causing one metal to corrode and effectively weld the components together with a layer of aluminum oxide. This bond is incredibly strong and resistant to simple force.
Intense Heat Cycles: A diesel engine is a machine of constant expansion and contraction. As the engine heats up to operating temperature, both the injector and the cylinder head expand. As it cools, they contract. However, they have different coefficients of thermal expansion. Over thousands of cycles, this microscopic movement, combined with contaminants filling any voids, can progressively tighten the fit until the injector is mechanically locked in place.
Carbon Buildup ("Black Death"): This ominous-sounding term refers to the hard, black, tar-like substance that can form around the injector body and nozzle seal. It's caused by combustion gases leaking past a failing injector seal. These superheated gases carry carbon particulates, which bake onto the injector and the cylinder head bore, creating a cement-like seal that can be harder than the surrounding metal.
The High Cost of a Failed Removal
Without a proper puller, a mechanic's only options are crude and risky. The inevitable result of prying or hammering is often a snapped injector. When the injector body breaks, its lower half and nozzle remain firmly lodged deep within the cylinder head. This scenario is a technician's nightmare. The repair process now involves specialized broken-injector extractors, precision drilling, and tapping—all performed with the risk of sending metal shavings into the cylinder. In many cases, the only guaranteed solution is to remove the entire cylinder head for machine shop work, turning a standard repair into a catastrophic, multi-thousand-dollar ordeal that can sideline a commercial vehicle for days or even weeks.
Advantages Over Generic Removal Methods
A professional common rail injector puller offers undeniable advantages that make it a wise investment:
Controlled, Axial Force: It applies steady, even pressure directly in line with the injector's path of removal. This distributes the force safely and prevents the side-loading that can easily snap an injector.
Component Protection: It is designed to engage the injector without damaging its delicate body, electrical connectors, or the surrounding fuel lines and valve train components.
Unmatched Efficiency: It dramatically reduces labor time, minimizes the risk of costly comebacks, and ensures a professional, repeatable result. For any commercial operation where downtime is measured in hundreds or thousands of dollars per day, a specialized puller pays for itself the very first time it prevents a snapped injector.
A Roundup of Common Rail Injector Puller Types
Choosing the right common rail injector puller is not a one-size-fits-all decision; it depends on the severity of the seizure, the specific engine design, and the technician's budget. The primary types are mechanical, hydraulic, and pneumatic, each with distinct principles of operation, advantages, and ideal use cases. Whether you're dealing with a lightly stuck injector in a passenger car or one fused by years of carbon buildup in a heavy-duty truck from Volvo, Mack, or Kenworth, there is a tool designed for the job.
Mechanical Slide Hammer Pullers: The Industry Standard
The mechanical slide hammer puller is the most ubiquitous and often the first tool a technician reaches for. Its operation is based on the simple physics of momentum and impulse.
How It Works: The tool consists of a long shaft, a heavy sliding weight (the hammer), and an adaptor that threads onto the injector. The technician forcefully slides the weight away from the engine until it impacts a stop at the end of the shaft. This abrupt stop transfers the hammer's kinetic energy into a sharp, powerful pulling impact on the injector. Repeated impacts work to break the static friction and bonds of corrosion and carbon.
Pros: They are relatively inexpensive, mechanically simple with few failure points, highly portable, and require no external power source like air or hydraulics. Their versatility is enhanced by kits that include a wide range of adaptors for various thread sizes (M12, M14, M17, M20, M25, M27), making them adaptable for many jobs. Understanding How do Common Rail Injectors Work helps in selecting the right attachment point.
Cons: The primary drawback is the shock-based force, which can potentially damage the delicate internal components of an injector you intend to reuse. It also requires significant physical effort and space to operate effectively. The force is less controlled than hydraulic methods, slightly increasing the risk of breaking a very fragile or severely seized injector.
Hydraulic Injector Pullers: The Power of Controlled Force
For the most extreme cases of seized injectors, the hydraulic injector puller is the ultimate weapon. These kits are engineered to overcome the most stubborn bonds with immense, steady force.
How It Works: Leveraging Pascal's principle, a hand- or foot-operated hydraulic pump pushes fluid into a compact, powerful ram or cylinder. This ram is mounted on a bridge that straddles the injector and is anchored to the cylinder head. As pressure builds, the ram extends, generating a slow, controlled, and massive pulling force—often 12, 20, or even 30 tons—that gradually and irresistibly pulls the injector from its bore.
Pros: The primary advantage is the immense and highly controllable force. The steady pressure is far less likely to shock and snap a brittle injector compared to an impact tool. It requires minimal physical effort from the technician, reducing fatigue and improving safety. Many kits include a pressure gauge, allowing the user to monitor the force being applied.
Cons: Hydraulic kits are the most expensive option. They are more complex, with pumps, hoses, and seals that require maintenance and can potentially leak. Their setup is also more involved than a simple slide hammer.
Pneumatic (Air Vibration) Pullers: The Finesse Approach
Pneumatic pullers offer a clever alternative to brute force, using high-frequency vibrations to achieve removal.
How It Works: Connected to a standard shop air compressor, these tools function like a specialized air hammer. They deliver thousands of tiny, rapid impacts per minute through an adaptor to the injector body. These vibrations work to crystallize and break apart the hardened carbon and corrosion that are holding the injector, effectively shaking it loose from its bond.
Pros: This method is excellent for breaking the seal of "black death" without applying excessive pulling force. It's ideal for working in confined spaces where swinging a slide hammer is impossible. The finesse approach is often gentler on the injector itself, increasing the chances of removal without damage.
Cons: A pneumatic puller requires a robust air supply to operate effectively. While excellent at breaking the initial bond, it may not have enough raw pulling power for injectors that are mechanically seized and may need to be used in conjunction with a mechanical puller. When you need to Check Common Rail Injectors and preserve them, this can be a great first step.
Key Features to Consider When Choosing Your Kit
Feature Mechanical Slide Hammer Hydraulic Puller Pneumatic (Air Vibration) Puller Force Impact Sustained, High Vibrational, Loosening Cost Lower Higher Medium Best For Most common seizures Severely seized injectors Breaking stubborn bonds, tight spaces Ease of Use Moderate Easier (less physical effort) Moderate (requires air supply)
Selecting the right common rail injector puller kit is a critical investment that directly impacts a workshop's efficiency, safety, and profitability. The difference between a smooth, 30-minute repair and a multi-day, engine-out disaster often comes down to the quality, design, and compatibility of your tools. Here are the essential factors to scrutinize before making a purchase.
Material Science and Build Quality: The Foundation of Reliability
An injector puller is a tool that operates under extreme stress; inferior materials will inevitably fail at the worst possible moment. Look for kits constructed from high-strength, heat-treated alloy steels.
Hardened Steel (S45C): This is a medium carbon steel that offers a good balance of strength and toughness, making it suitable for the main bodies and frames of pullers.
Chrome-Vanadium (Cr-V) and Chrome-Molybdenum (Cr-Mo) Steel: These alloys are superior choices for high-stress components like spindles, force screws, and adaptors. The addition of chromium enhances hardness and corrosion resistance, while vanadium and molybdenum significantly increase tensile strength and resistance to shock and fatigue. Pay close attention to the manufacturing details. Precision-machined threads are non-negotiable; poorly cut threads will strip under load, rendering the tool useless and potentially damaging the injector. A quality corrosion-resistant finish, such as black oxide or chrome plating, is also vital to protect the tool from the harsh chemical environment of an engine bay.

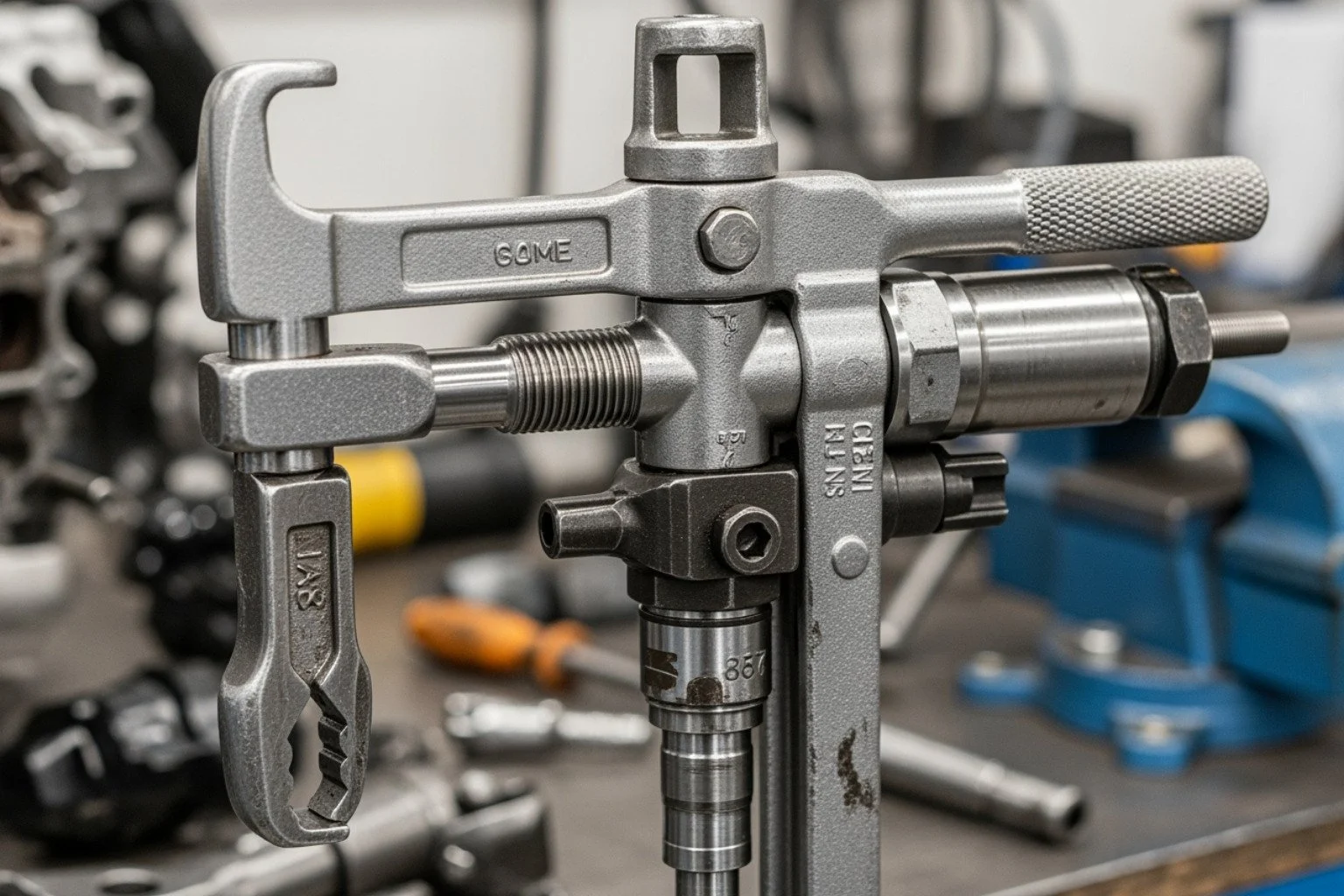

Anatomy of a Comprehensive Kit: The Essential Components
A professional kit is more than just a puller; it's a complete system designed for versatility. A comprehensive set should include:
The Power Unit: This will be either a slide hammer (look for weights between 1.5 kg and 5 kg for different applications), a hydraulic ram with its pump and hose, or a pneumatic vibrator.
Pulling Bridge or Frame: This is the anchor of the system. It rests on the cylinder head or valve cover, providing a stable platform for the puller to push against. Look for designs with adjustable legs or multiple footprints to ensure stability on uneven surfaces and prevent damage to the engine.
Spindles, Force Screws, and Pulling Rods: These are the threaded rods that connect the power unit to the injector adaptor. A good kit will include multiple lengths and diameters to accommodate different engine depths and injector types.
A Wide Range of Adaptors: This is arguably the most critical part of a universal kit. It must include a diverse selection of threaded adaptors (e.g., M12, M14, M17, M20, M25, M27 with various thread pitches) to connect to the injector's solenoid or fuel inlet port. Specialized components like an injector claw (which grips the body of the injector) or fork-style adaptors are also highly valuable.
Support Components: Look for useful extras like articulated joints or swivels that allow for off-axis pulling in cramped engine bays, and deep sockets for removing injector retaining nuts.
Durable Storage Case: A heavy-duty, blow-molded case is essential for keeping dozens of small, precise components organized, protected, and ready for the next job. Having a complete set is as crucial as having good Diesel Injector Repair Kits.
Vehicle and Engine Compatibility: Ensuring the Right Fit
There is no such thing as a truly universal tool that fits every engine ever made. It is crucial to ensure the kit you choose is compatible with the vehicles you service most frequently.
Universal Kits: These are excellent for independent shops that work on a wide variety of passenger cars, light-duty trucks, and some heavy-duty engines. Their value lies in their broad array of adaptors. However, always check the specific adaptor list against the requirements of your common jobs.
Engine-Specific Kits: For technicians specializing in heavy-duty trucks, a kit designed for Volvo (D11, D13, D16), Mack (MP7, MP8), Kenworth/Peterbilt (Paccar MX-11, MX-13), and Cummins engines is a much wiser investment. These engines, often using unique injector designs like the Volvo Construction Common Rail Fuel Injector, may require specific puller geometry or adaptor types not found in universal sets. Always cross-reference the kit's compatibility list with the vehicle's service manual to guarantee a perfect match and avoid costly mistakes.
How to Use a Common Rail Injector Puller: A Detailed Guide
Using a common rail injector puller is a process that demands patience, precision, and a methodical approach. While the exact steps will vary depending on the puller type and the specific engine, the fundamental principles of safety, preparation, and controlled force are universal. Rushing this job or skipping steps is the fastest way to cause the very damage the tool is designed to prevent. Follow this detailed procedure for a safe and successful extraction.
Step-by-Step Removal Process: A Professional Workflow
Preparation and Penetration: This is the most critical and often overlooked phase.
First, disconnect the vehicle's battery to prevent any electrical shorts or accidental cranking.
Thoroughly clean the entire area around the injectors using compressed air, brushes, and a vacuum. The goal is to remove all dirt, grease, and debris that could fall into the engine's open bores later.
Liberally apply a high-quality penetrating oil (such as Kroil, PB Blaster, or a 50/50 mix of acetone and ATF) into the injector well around the injector body. Let it soak. For a severely seized injector, this is not a 5-minute job. Allow it to penetrate for several hours, or even overnight. Tapping the injector lightly can help the oil wick into the threads and crevices.
Injector Disconnection and Access:
Before touching any fuel lines, ensure the high-pressure common rail system is depressurized according to the manufacturer's service procedure. This is a critical safety step.
Carefully disconnect the electrical connectors from the injectors. They are often brittle from heat, so use appropriate trim tools if necessary. Label them to ensure correct reassembly.
Disconnect the high-pressure fuel lines and any low-pressure return lines. Use flare nut wrenches to avoid rounding off the fittings. Cap the open lines and ports immediately to prevent contamination.
Remove the injector hold-down bolt or clamp. Note its orientation and store it safely.
Assemble the Puller System:
Select the correct adaptor from your kit that matches the injector's thread or connection point. Thread it on carefully and ensure it is fully and securely seated. Do not overtighten.
Assemble the rest of the puller. If using a bridge-type puller, position its feet on solid, stable points on the cylinder head, ensuring it's level and centered over the injector.
Attach the slide hammer, hydraulic ram, or pneumatic tool to the adaptor via the main spindle. Ensure the entire assembly is perfectly aligned with the injector's axis. Any off-angle pulling will introduce side-loading forces and dramatically increase the risk of breakage.
The Extraction: Apply force methodically and patiently.
With a Slide Hammer: Start with short, controlled impacts. Don't use full force immediately. Gradually increase the intensity of the impacts. Feel for any movement. Sometimes, a series of sharp, quick taps is more effective than a few massive blows.
With a Hydraulic Puller: Begin pumping slowly and watch the pressure gauge (if equipped). Apply pressure gradually. You may hear creaks or pops as the corrosion and carbon bonds break. If the force becomes excessive without any movement, release the pressure, apply more penetrating oil, and wait.
With a Pneumatic Puller: Apply vibrations in short bursts of 10-15 seconds. After each burst, try to wiggle the injector by hand or apply light pulling pressure. The goal is to shatter the bond, not pull it out with vibration alone.
Post-Removal and Preparation for Installation:
Once the injector is free, carefully lift it straight out of its bore. Immediately cover the open injector bore with a lint-free cloth or a dedicated plug to prevent any debris from entering the cylinder.
Crucially, you must thoroughly clean the injector bore and seat before installing a new injector. Use specialized injector bore brushes (nylon, brass, and steel) to scrub the walls of the bore. Use a specialized injector seat cutter or reamer to clean and resurface the critical sealing surface at the bottom of the bore. Failure to do this will cause the new injector's seal to fail, leading to combustion leaks and a repeat case of "black death."
If you plan to reuse the old injectors, they must be properly cleaned and tested. Learn How to Clean Common Rail Diesel Injectors using professional methods.
Safety First: Best Practices for Injector Removal
Wear Appropriate Personal Protective Equipment (PPE): This is non-negotiable. Wear high-impact safety glasses and a face shield to protect against fuel spray and tool failure. Fuel-resistant gloves are essential to protect your skin.
Follow Manufacturer Instructions: Always refer to the service manual for the vehicle and the instructions for your puller kit. Pay close attention to torque specifications and procedural warnings.
Patience Over Power: If an injector refuses to budge, do not simply apply more force. This is the number one cause of snapped injectors. The correct response is to stop, re-apply penetrating oil, let it soak longer, and perhaps apply gentle heat to the surrounding cylinder head area (with extreme caution).
Inspect Your Tools: Before every use, inspect your puller components for signs of wear, stress fractures, or damaged threads. A failing tool under tons of pressure is an extreme safety hazard.
Frequently Asked Questions about Common Rail Injector Pullers
Investing in a specialized tool like a common rail injector puller is a significant decision for any workshop. It's natural to have questions about cost, necessity, and selection. Here are detailed answers to the most common queries to help you make an informed choice.
What is the typical price range for a common rail injector puller?
The cost of an injector puller kit varies dramatically based on its type, build quality, and comprehensiveness. The market can be broken down into several tiers:
Simple Adaptors: $20 - $50. These are not pullers themselves but individual adaptors that allow you to connect a standard slide hammer you already own to a specific injector. Best for very occasional, specific jobs.
Basic Mechanical Slide Hammer Kits: $100 - $250. This is the entry point for most professional shops. These kits typically include a decent slide hammer and a basic assortment of the most common adaptors in a carrying case.
Comprehensive Professional Mechanical Kits: $300 - $600+. These are built for durability and frequent use. They feature higher-quality materials (like Cr-Mo steel), a much wider and more specialized range of adaptors, and often a more robust slide hammer or force screw mechanism.
Hydraulic and Pneumatic Kits: $500 - $1,500+. This is the top tier, designed for specialists and shops that frequently encounter severely seized injectors. The price reflects the complexity of the hydraulic ram, pump, and specialized pneumatic vibrators.
When you compare these prices to the cost of a single failed removal—which can easily exceed $2,000 in labor and machine shop fees for cylinder head repair—a quality puller kit is clearly one of the best investments a diesel shop can make.
Can I really not remove an injector without a puller?
While it might be technically possible in rare cases where an injector is only lightly stuck, attempting removal without a dedicated puller is highly discouraged and professionally irresponsible. The risks of component damage are astronomically high. Modern common rail injectors are precision-engineered components that fit into the cylinder head with extremely tight tolerances. They are not designed to withstand the side-loading and shock forces from prying with a screwdriver or hammering with vice grips. A snapped injector transforms a routine job into a major, expensive repair that can take a vehicle off the road for days. As professional Diesel Fuel Injector Rebuilders can attest, a significant portion of injectors they receive for core evaluation are damaged not by engine failure, but by improper removal attempts. If you lack the right tools or face an exceptionally stubborn injector, the wisest and most cost-effective decision is often to call a specialist who has them.
What should I do if the injector breaks during removal?
This is the scenario every technician dreads. If an injector snaps, stop immediately. Do not continue to pry or hammer. The situation now requires an even more specialized set of tools: a broken injector extractor kit. These kits typically include precision-drilled guides that center a drill bit on the remaining injector body, allowing you to drill a hole and use a threaded extractor to pull the piece out. This is a high-skill operation that carries the risk of damaging the cylinder head or dropping metal debris into the cylinder. If you are not equipped or experienced with this procedure, the safest option is to have the vehicle towed to a specialty shop or remove the cylinder head for professional service.
How do I know which puller kit to buy for my specific engine?
Choosing the right kit is crucial for success. A systematic approach is best:
Consult the Vehicle Service Manual: This is your primary source of truth. It will specify the injector type, thread sizes for any service ports, and often recommend a specific OEM tool or procedure for removal.
Physically Identify the Injector: Before ordering a tool, look at the injector in the engine. Note the manufacturer (e.g., Bosch, Delphi, Denso, Siemens) and identify potential connection points. Measure the thread size of the fuel inlet or solenoid if possible (e.g., M14 x 1.5, M17 x 1.0). This information is vital for matching adaptors.
Assess Your Primary Workload: If you primarily service a specific fleet of heavy-duty trucks like Volvo, Mack, Kenworth, and Paccar, investing in a kit specifically designed for those applications is the most efficient choice. For a shop servicing a wide variety of makes and models, a high-quality universal kit offers the best value.
Verify Compatibility Before Purchase: Don't rely on a generic product title. Scrutinize the detailed list of included adaptors and cross-reference it with your needs. Reputable tool manufacturers provide detailed compatibility charts. When looking for Diesel Fuel Injectors for Sale, the supplier may also offer guidance on compatible removal tools.
Conclusion: Streamlining Your Diesel Engine Repairs for Maximum Uptime
Investing in a high-quality common rail injector puller is a strategic decision for any serious diesel mechanic, workshop owner, or fleet manager. It is a fundamental shift from a reactive, high-risk approach to a proactive, controlled, and efficient process. A professional puller—whether it's a robust mechanical slide hammer, a powerful hydraulic unit, or a finessed pneumatic tool—provides the precise, targeted force required to conquer seized injectors without the catastrophic risk of damaging the injector or, more critically, the cylinder head.
The return on this investment is immediate and substantial. A modest outlay for the right tool prevents thousands of dollars in potential engine repairs, eliminates countless hours of frustrating labor, and, most importantly, minimizes vehicle downtime. In the commercial trucking industry, where every hour on the road is revenue earned, this tool is an essential piece of equipment in any professional maintenance toolkit.
However, a successful removal is only half the battle. The long-term reliability and performance of the engine depend entirely on the quality of the replacement parts installed. At G2 Diesel Products, we specialize in manufacturing and remanufacturing precision diesel fuel injectors for the most demanding applications, including Volvo, Mack, Kenworth, and Paccar trucks. We understand that for commercial vehicles, reliability isn't just a feature; it's the cornerstone of profitability.
Installing subpar, cheaply made injectors can completely undermine the most professional repair work, leading to poor performance, increased fuel consumption, and premature failure. That's why knowledgeable fleet managers and expert mechanics choose the Best Diesel Fuel Injectors on the market. Quality parts ensure optimal engine performance, fewer costly comebacks, and more time on the road where your vehicles belong.
